HZLX-96 ASTM D96 Crude Oil Centrifuge Tester
Product Overview

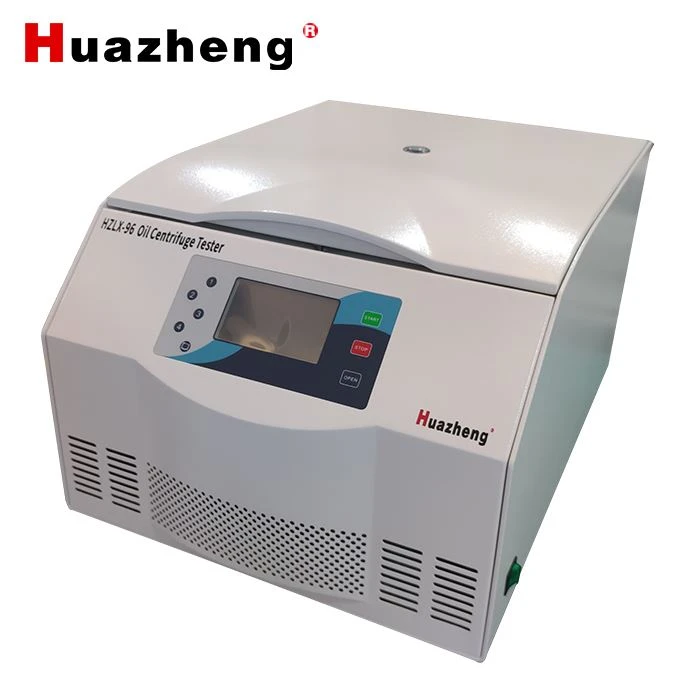

The HZLX-96 Oil Centrifuge Tester is a high-performance, microprocessor-controlled laboratory centrifuge engineered for the separation, purification, and analysis of transformer oil and other insulating liquids. Driven by a brushless DC motor and equipped with a swing-out rotor (4 × 100 mL capacity), the HZLX-96 delivers a maximum speed of 2,000 rpm and a maximum RCF of 957 × g, making it the ideal instrument for dissolved gas analysis (DGA) sample preparation, sediment separation, and quality control testing of dielectric fluids.
With a touch-sensitive LCD control panel, bilingual Chinese/English interface, 100 programmable presets, and a temperature-controlled chamber (ambient +10°C to 80°C), the HZLX-96 combines laboratory precision with industrial durability. Its integrated safety system - including overspeed protection, imbalance detection, door lock interlock, and automatic error diagnostics - ensures safe, worry-free operation in high-throughput testing environments.
Product Value
Accurate Oil Quality Assessment: Centrifugation is an essential pretreatment step in transformer oil testing - removing free water, sludge, and suspended particles before dielectric strength, interfacial tension, and dissolved gas analysis - ensuring downstream test results are not compromised by sample contamination.
Regulatory Compliance: Meets the sample preparation requirements of ASTM D3612 (DGA), IEC 60422 (oil maintenance guide), and GB/T 7595 (in-service transformer oil quality) for centrifuged oil samples.
Lab Efficiency: 100 user-programmable presets eliminate repetitive parameter entry; the memory function restores the last-used settings on power-up, and the automatic lid opening feature streamlines high-throughput workflows.
Built for Endurance: The 70 kg heavy-duty chassis, brushless motor (maintenance-free), and industrial-grade components ensure years of reliable service even in continuous-use testing labs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | HZLX-96 |
| Maximum Speed | 2,000 rpm |
| Maximum RCF | 957 × g |
| Maximum Volume | 4 × 100 mL |
| Speed Accuracy | ±20 rpm |
| Speed Control Resolution | 1 rpm |
| Rotor Type | Swing-out rotor (Order No. 31304) |
| Motor Type | Brushless DC motor |
| Noise Level | ≤ 60 dBA |
| Timer Range | 1 s to 99 h 59 min 59 s |
| Temperature Range | Ambient +10°C to 80°C (heating); pre-cooling: –20°C to 40°C |
| Acceleration Settings | 9 levels (1–9) |
| Deceleration Settings | 10 levels (0–9; 0 = free coast) |
| Programmable Presets | 100 user-defined programs |
| Display | Touch-sensitive LCD, bilingual (Chinese/English) |
| Safety Protections | Door interlock, overspeed (E-2), imbalance (E-9), undervoltage (E-4), speed sensor (E-7), communication (E-8), temperature sensor (E-14), excessive brake (E-5), door lock position (E-17/E-18) |
| Power Supply | AC 220V, 50/60 Hz, 15A |
| Net Weight | 70 kg |
| Dimensions (L × W × H) | 685 × 500 × 405 mm |
| Operating Environment | Indoor; ≤ 80% RH @ 31°C; ≤ 50% RH @ 40°C; avoid direct sunlight and heat sources |
| Packing List | Host machine, centrifuge tubes (×4), tube holders (×4), power cord, hex key |
FAQ
Q1: What is its purpose in oil testing? Pre-treats oil before BDV, DGA, moisture tests.
Q2: How to balance samples and save presets? Pairs ≤2g difference. Save up to 100 presets.
Q3: RPM vs RCF? Which timing mode to use? RPM = speed; RCF = g-force. Use Time at Set Speed.
Q4: What temperature for oil centrifugation? 20–40°C standard. 40–60°C for waxy oils. Max 80°C.
Q5: Common errors and maintenance tips? E9=imbalance. Clean & lube rotor. Call for E7/E14.
