A VLF hipot tester, or Very Low Frequency High Potential tester, is a crucial piece of equipment in the electrical testing industry. In this blog, we'll explore what a VLF hipot tester is, how it works, its applications, and the benefits it offers. As a leading supplier of VLF hipot testers, we're excited to share our in - depth knowledge on this topic.
What is a VLF Hipot Tester?
A VLF hipot tester is a device used to perform high - potential (hipot) tests on electrical cables and equipment at very low frequencies, typically between 0.1 Hz and 0.01 Hz. Traditional hipot tests are often conducted at power frequencies (50 Hz or 60 Hz), but these tests require large and expensive testing equipment, especially for long cables. VLF hipot testing provides a more practical and cost - effective alternative.
The main purpose of a hipot test is to check the integrity of the insulation in electrical systems. By applying a high voltage to the insulation, we can detect any weaknesses or defects that could potentially lead to electrical failures, short circuits, or even safety hazards.
How Does a VLF Hipot Tester Work?
A VLF hipot tester generates a high - voltage, low - frequency AC signal. The process starts with a low - voltage input, which is then converted into a high - voltage output through a series of electrical components such as transformers and rectifiers. The frequency of the output voltage is adjusted to a very low value.
When the tester is connected to the electrical cable or equipment under test, the high - voltage signal is applied to the insulation. The tester monitors the current flowing through the insulation. If the insulation is in good condition, only a small leakage current will flow. However, if there is a defect in the insulation, such as a crack or a puncture, a larger current will flow, which the tester can detect and alarm.
Applications of VLF Hipot Testers
- Cable Testing: One of the most common applications of VLF hipot testers is in testing medium - to high - voltage cables. These cables are used in various industries, including power generation, transmission, and distribution. VLF hipot testing can help identify insulation problems in new cables before they are installed and can also be used for periodic maintenance testing of existing cables.
- Electrical Equipment Testing: VLF hipot testers can be used to test other electrical equipment, such as motors, generators, and switchgear. By ensuring the integrity of the insulation in these devices, we can prevent unexpected failures and reduce downtime.
- Field Testing: Due to their portability and relatively small size compared to traditional power - frequency hipot testers, VLF hipot testers are ideal for field testing. They can be easily transported to different locations and used to test electrical systems on - site.
Benefits of Using a VLF Hipot Tester
- Cost - Effective: VLF hipot testing requires less expensive equipment compared to power - frequency testing. The lower frequency allows for smaller and lighter transformers and other components, reducing the overall cost of the testing setup.
- Portability: As mentioned earlier, VLF hipot testers are more portable. This makes them suitable for use in a variety of locations, including remote areas where it may be difficult to transport large testing equipment.
- Safety: VLF hipot testing is generally considered safer than power - frequency testing. The lower frequency reduces the stress on the insulation during testing, minimizing the risk of damaging the insulation.
- Accuracy: VLF hipot testers can accurately detect insulation defects. They are sensitive enough to identify small problems that could potentially lead to major failures in the future.
Our VLF Hipot Tester Product Line
As a VLF hipot tester supplier, we offer a wide range of high - quality products to meet the diverse needs of our customers. Here are some of our popular models:
- HZDP - 80KV 80kV Very Low Frequency VLF AC Hipot Tester: This tester is capable of generating a high voltage of 80 kV at a very low frequency. It is suitable for testing long and high - voltage cables.
- 50kV VLF AC High Voltage Test Set Ultra Low Frequency Generator: With a maximum voltage output of 50 kV, this test set is a versatile choice for medium - voltage cable and equipment testing.

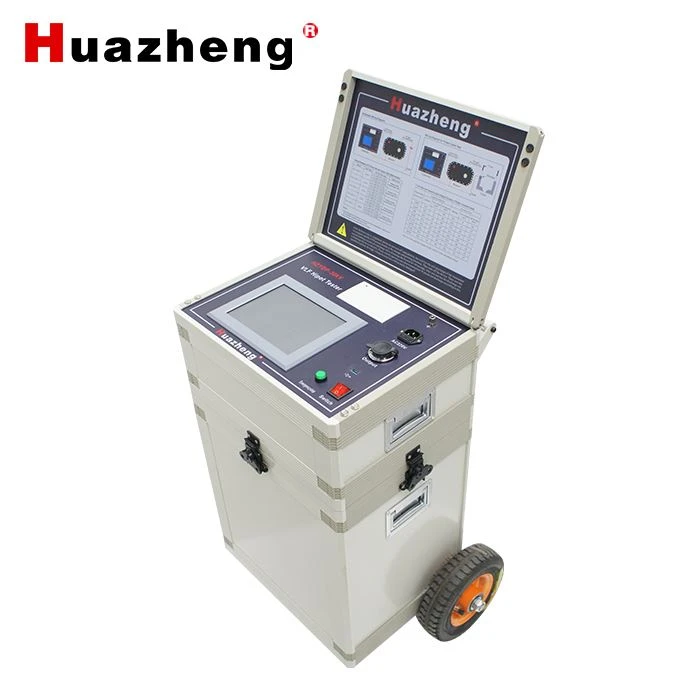

- HZYDP - 30kV Very Low Frequency VLF AC Withstand Voltage Test Machine: This machine is designed for applications where a lower voltage, such as 30 kV, is sufficient. It is easy to operate and provides reliable test results.
- HZDP - 60kV 60kV VLF Hipot Cable Test Equipment: Ideal for medium - to high - voltage cable testing, this equipment offers a 60 kV output with high precision.
- VLF Hipot Tester With Integrated Tan Delta And Partial Discharge: This advanced tester not only performs hipot tests but also measures tan delta and partial discharge, providing a more comprehensive evaluation of the insulation condition.
Why Choose Our VLF Hipot Testers?
- Quality Assurance: Our VLF hipot testers are manufactured using high - quality materials and advanced manufacturing techniques. We conduct strict quality control checks at every stage of the production process to ensure that our products meet or exceed international standards.
- Technical Support: Our team of experienced engineers and technicians is always ready to provide technical support to our customers. Whether you have questions about the operation of our testers or need assistance with a specific testing application, we can offer you the guidance you need.
- Customization: We understand that different customers may have different requirements. That's why we offer customization services for our VLF hipot testers. We can modify the specifications of our products to meet your unique needs.
Contact Us for Purchase and Consultation
If you're interested in our VLF hipot testers or would like to learn more about how they can benefit your electrical testing operations, we encourage you to contact us. We look forward to discussing your specific requirements and providing you with the best solutions for your testing needs. Whether you are a utility company, an electrical contractor, or a manufacturer, our VLF hipot testers can help you ensure the safety and reliability of your electrical systems.
