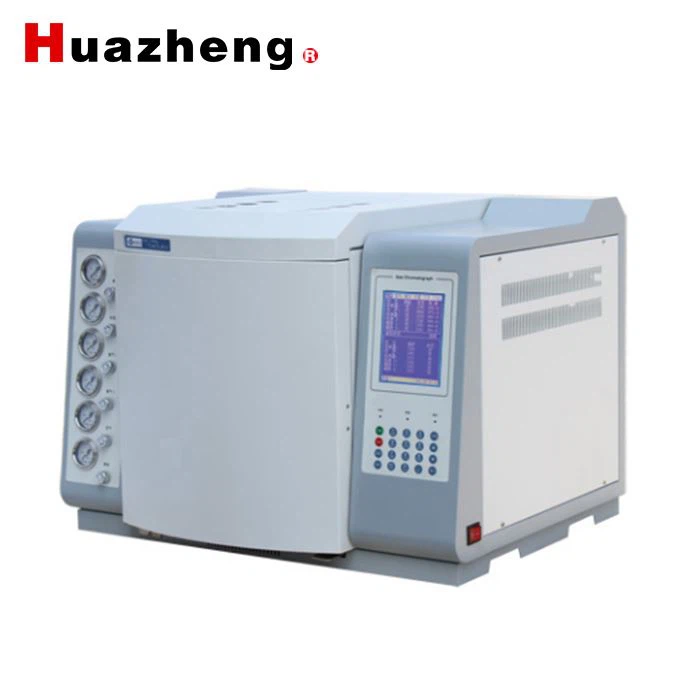

HZGC-1212A Transformer Oil Dga Dissolve Gas Analyzer
HZGC-1212A Transformer Oil Dga Dissolve Gas Analyzer
The HZGC-1212A transformer oil DGA dissolved gas analyzer adopts a three-detector process as recommended by industry standards. A single sample enables complete analysis of all dissolved gas components in insulating oil, including hydrogen (H₂), oxygen (O₂), methane (CH₄), ethylene (C₂H₄), ethane (C₂H₆), acetylene (C₂H₂), carbon monoxide (CO), and carbon dioxide (CO₂).
Instrument configuration
Name | Model | Number | Remark |
Gas chromatograph | HZGC-1212A | 1 platform | Standard accessories |
Detector | FID | 2 individual | Standard accessories |
TCD | 1 individual | ||
Conversion device | 1 The cover | Standard accessories | |
Chromatographic column | 1 The cover | Standard accessories | |
Chromatography workstation | Special power system | 1 The cover | Standard accessories |
Concussion instrument | 1 platform | Buy locally | |
Standard gas | 1 bottle | Buy locally | |
Gas source | Nitrogen, hydrogen, air | 1 The cover | Buy locally |
Computer printer | 1 The cover | Buy locally |
Instrument performance
The first sampling, the sample volume is 1 mL, the minimum detection concentration of transformer oil(ul/L)：
Component | H2 | CO | CO2 | CH4 | C2H4 | C2H6 | C2H2 |
Minimum detectable concentration(ul/L) | 2 | 1 | 5 | 0.1 | 0.1 | 0.1 | 0.1 |
dissolved gas analyzer for transformer oil
✿Typical spectrum
retention time Component Peak height content ul/L
0.258 hydrogen 6553 949.53
0.803 methane 48374 469.23
1.275 Carbon monoxide 5113 470.40
2.283 ethylene 36020 378.21
2.725 ethane 42901 557.71
3.475 acetylene 12097 191.13
10.525 Carbon dioxide 9128 3472.29
