HZGC-1212A Portable Transformer Oil Gas Chromatography Machine

Huazheng Electric Manufacturing (Baoding) Co., Ltd. is one of the leading manufacturers and suppliers of hzgc-1212a portable transformer oil gas chromatography machine in China. Please feel free to buy high quality equipment for sale here from our factory. Good service and reasonable price are available.

Portable Transformer Oil Gas Chromatography Machine

The Working Principle Of Gas Chromatograph

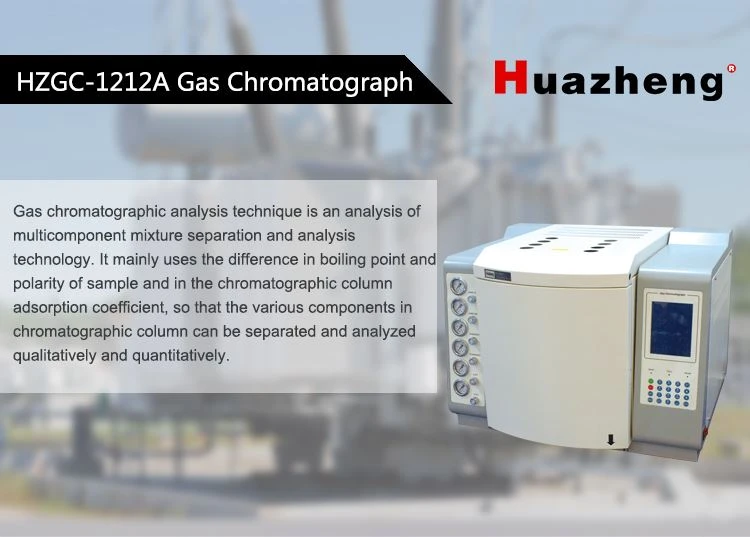

Gas chromatographic analysis technique is an analysis of multicomponent mixture separation and analysis technology. It mainly uses the difference in boiling point and polarity of sample and in the chromatographic column adsorption coefficient, so that the various components in chromatographic column can be separated and analyzed qualitatively and quantitatively.

A gas chromatograph use gas as a liquid phase (carrier gas).When the sample is fed into the injector and gasified,it will get into the packed column or capillary column with the carry of carrier gas. due to the differences in boiling point, polarity and adsorption coefficient of sample the various components in column will be separated.Then detect the components by the column after the detector according to the physical and chemical characteristics of components.Finally sent it to the chromatography workstation through the local area network (or the Internet) ,recording and analysis the components of the gas chromatogram by chromatography workstation and obtain the components analysis report. The working principle diagram is shown below:

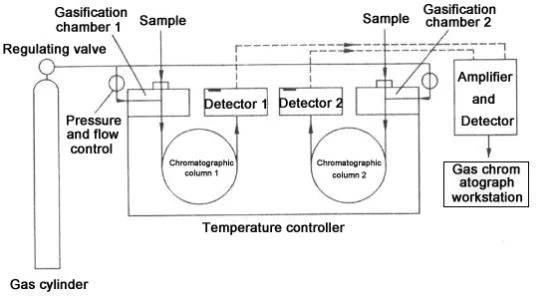

1.1 Gas chromatograph working principle diagram

Because the method has characteristics of high separation efficiency, fast speed of analysis and less consumption of sample, so it has been widely used in petroleum chemical industry, biological chemistry, medicine and health, the health and quarantine, food inspection, environmental protection, food industry, medical and clinical departments. Gas chromatography has solved the industrial production of intermediates and quality inspection of industrial products, scientific research, environmental testing, production control and other issues in these areas.

1.2 Characteristics Of HZGC-1212ASeries Gas Chromatograph

As we all knows, the traditional gas chromatograph is working with 1 chromatographs, 1 AD converters, 1 sets, 1 sets of computer printer mode. In this way the chromatograph should be equipped with more chemical factory, laboratory, colleges and universities ,the use and management of equipment is very inconvenient, the equipment should be invested duplicately and wasting seriously . Equipped with a large number of computers in the equipment management and data management also bring a lot of inconvenience to the user. At the same time, the traditional mode is often use the gas chromatograph of one manufacturer and workstation of another manufacturer to make the whole system.These make the function of the overall system difficult to express and the performance of the system difficult to improve.Not to speak of the function increasing raised by users (such as remote monitoring data transmission, the monitoring instrument etc.).

Addressing the limitations of traditional gas chromatographs, Huazheng Electric Manufacturing (Baoding) Co., Ltd. has leveraged its strong technical development capabilities to create a new-generation gas chromatograph. By integrating brand-new industrial modeling, advanced electronic circuitry, and mainstream IP technology, this instrument represents a fundamental advancement in chromatographic analysis.

The HZGC-1212A completely abandons the use of discrete chips, chip-level disassembly, and external RS232 serial communication. Instead, it employs the latest high-integration industrial-grade chips, bus technology, Ethernet communication, micro-flow gas control, and advanced data processing. These innovations optimize temperature programming and gas control, fundamentally improving instrument reliability and ease of maintenance.

Networked Operation and Remote Capabilities

Through the integration of network technology and high-precision AD conversion circuits, the HZGC-1212A series breaks away from the traditional bulky, cumbersome chromatograph workflow. It enables multiple chromatographs to share a single computer for data analysis, printing, and storage. Remote monitoring and real-time transmission of chromatographic data are now achievable, significantly reducing laboratory investment and operational costs while facilitating real-time product quality tracking.

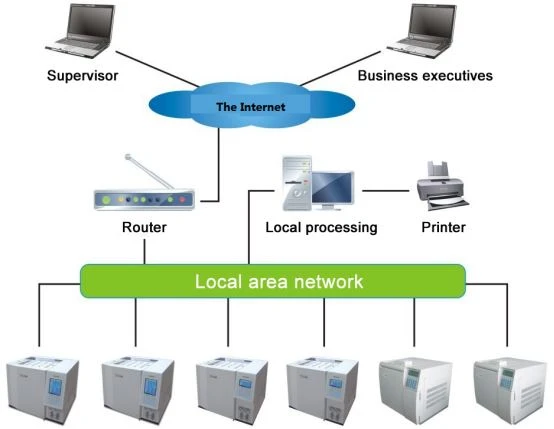

Figure 1.2 illustrates the HZGC-1212A network chromatograph working diagram.

Fig.2 the HZGC-1212A network chromatograph working diagram

The series of HZGC-1212A gas chromatograph has the following functions and features:

★ Using the advanced technology of the 10/100M adaptive Ethernet communication interface, and a built-in IP protocol stack,so that the instrument can easily through the intranet, Internet to realize the long-distance data transmission; convenient laboratory erection, simplifies the laboratory configuration and convenient data management;

★ Within the instrument 3 independent connecting process is designed and can be connected to the local processing (Laboratory), head of unit (such as quality inspection, production director, chief), as well as the supervisor (such as environmental protection bureau, bureau of technical supervision and so on),can make the unit in charge of the main pipe and the real-time monitoring instrument and data analysis results easily;

★ The NetChromTM workstation equipped with the instrument can simultaneously support many sets of chromatograph working at the same time, realize the data processing and countercharge, simplifies the document management, and reduce the maximum user laboratory investment and operating costs;

★ The instrument can be connected to the manufacturers through the Internet, to realize the remote diagnosis, remote program update (need user license);

★ The instrument can be equipped with a 5.7 inch color LCD screen or 192*64 monochrome LCD screen, meet the needs of different users;

★ System has 2 sets of operating system which are in English and Chinese and can be switched freely

★ Temperature control area can be named by the user, is convenient for the user to use;

★ The instrument uses a multiprocessor parallel working mode, the instrument is more stable and reliable; can be equipped with a variety of high performance detector selection, such as FID, TCD, ECD, FPD and NPD ,can be installed with 3 types of detector at the same time, up to three detector, which can meet the complex sample analysis. Also can use detector append mode, so that you can choose other detector conveniently after you purchase the instrument.

★ The instrument adopts modular structure design.The design is clear, convenient to replacement upgrade and protect the effectiveness of investment;

★ New microcomputer temperature control system, high precision of temperature control , reliability and anti-interference performance; have six completely independent temperature control system, can realize the sixteen step temperature-programmed, analysis enables the device to do a greater range of samples; has a pillar box after automatic door system, the temperature control precision is improved, heating-up/ cooling faster;

★ Instrument can be matching with advanced electronic flow controller (EFC) and electronic pressure controller (EPC),realizing the pneumatic digital control, can greatly improve the stability and reproducibility of the quantitative result;

★ The instrument has a timing start automatically program, can complete online analysis of gas samples easily (to be equipped with automatic sample parts);

★ Built-in chromatography machine with low noise, high resolution of 24 bit AD circuit, and has the functions of storage, baseline baseline deduction.

★ Random equipped with workstations is suitable for both Chinese and English WinXP, Win2000, Win7, Win8 operating system.

★ The chromatographic system with completely independent intellectual property rights has the standard interface of MODBUS/TCP, and can be easy docking with DCS .

★ The instrument can dock with many national and international manufacturers of the autosampler ; such as SHIMADZU AOC-20i, Italy HTA company's HT series automatic sampler.

1.3 Model And Technical Indicators Of HZGC-1212A Gas Chromatograph

HZGC-1212A gas chromatograph is made up by injector, detector, chromatographic column box, gas flow control system, circuit control detection system and network version of dedicated workstations etc.

HZGC-1212AⅠnetwork gas chromatograph is designed for routine sample analysis and to create cost-effective single retrieval models, it has all the advantages of network chromatograph . It can be matched with column (or capillary) injector, FID (or TCD) detector. Can be widely used in chemical, pharmaceutical, food and other fields of quality control, product testing.

The main technical indicators:

● operating display: 192*64 periodic lattice Chinesize liquid crystal

● temperature control area: 6 ways

● temperature: Room temperature above 5 ℃ ~ 400 ℃.Increment:1 ℃.Accuracy :±0.1 ℃

● temperature-programmed order: 16 order

● programming: rate 0.1 ~ 39 ℃ /min (common type); 0.1 ~ 80 ℃ /min (high speed)

● external events: 4 ways

● injector types: packed column sampler, capillary injector.

● detector number: 1; FID, TCD, optional

● start sampling: manual, automatic optional

● communication interface: Ethernet: IEEE802.3
