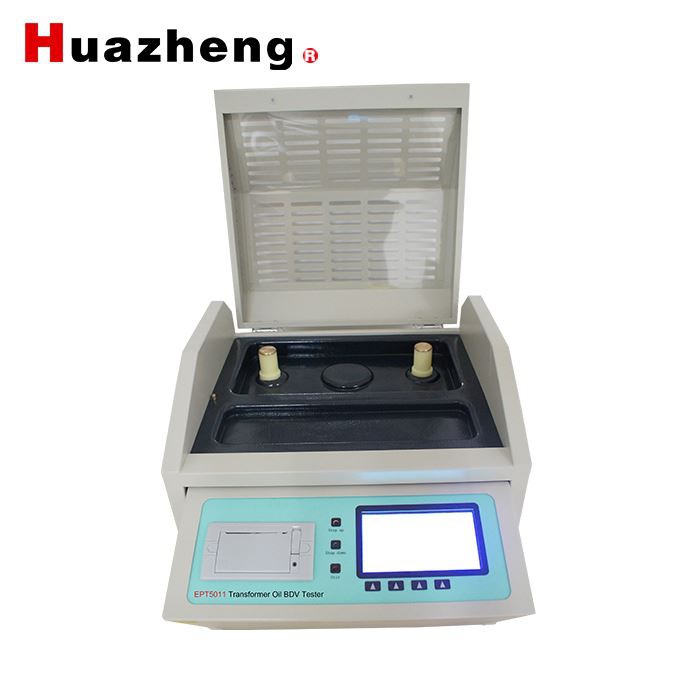

80 kV Transformer Oil Break Down Voltage Tester
I. Summary
The Transformer Oil BDV Tester is a high-precision, all-digital industrial instrument developed by our team of scientific and technical professionals. Leveraging our expertise and conducting extensive field tests with long-term, unremitting efforts, we have designed this instrument in accordance with the relevant provisions of national standard GB507-1986 and industrial standard DL/T846.7-2004.
To meet the diverse needs of users, this series of instruments is available in multiple configurations, including single-cup, three-cup, and cup-type models. The instrument features a simple structure and an elegant appearance.
With automatic digital computer control, it offers high measurement accuracy, strong anti-interference capability, and safe, reliable operation.
II. The instrument characteristics
High-Capacity MCU Control: Controlled by a large-capacity single-chip microcontroller for stable and reliable operation.
Watchdog Circuit: Equipped with a wide-range watchdog circuit to prevent system lockups or crashes.
Multiple Test Methods: Built-in programs include IEC156, GB507-2002 national standard methods, plus a customizable operation mode to accommodate diverse user requirements.
Special Glass Oil Cup: The oil cup is cast from special glass, eliminating interference such as oil leakage.
High-Voltage End Sampling: Unique high-voltage end sampling design feeds test values directly into the A/D converter, avoiding errors caused by analog circuitry and ensuring more accurate measurement results.
Comprehensive Protection: Features flow, overpressure, and short-circuit protection, along with strong anti-interference capability and electromagnetic compatibility.
Portable Design: Compact and lightweight structure for easy mobility, suitable for both indoor and outdoor use.
III. Technical indicators
| Item | Specification |
| Booster capacity | 1.5 kVA |
| Boosting speed | 2.0 kV/s, 3.0 kV/s; optional fine adjustment: 0.2 kV/s |
| Output voltage | 0～80 kV |
| Power distortion factor | ＜ 1% |
| Display mode | Large-screen LCD character display |
| Electrode spacing | Standard 2.5 mm |
| Overall dimensions (L×W×H) | 430 × 350 × 370 mm |
| Weight | 26 kg |
IV. Conditions of use
1. The environment temperature：0～40℃
2. Relative humidity：≤ 85%
3. Working power supply：AC 220V ± 20%
4. Power frequency：50 Hz ± 5 Hz
5. Power consumption：＜200 W
After-sales Service
Within one year from the date of purchase, the instrument belongs to the company's product quality problems for free maintenance, providing maintenance and technical services for life. If the instrument is found to be abnormal or malfunctioning, please contact the company in time to arrange the most convenient treatment plan and provide you with the fastest on-site service.
