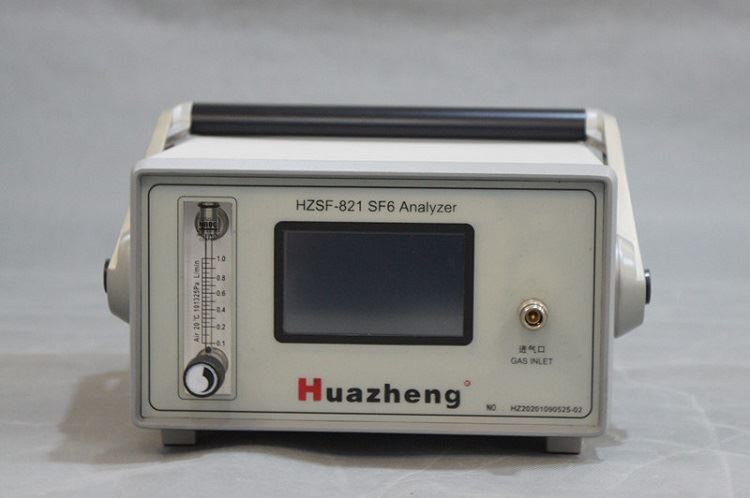

HZSF-821 SF6 Gas Purity Test Set
Huazheng Electric Manufacturing (Baoding) Co., Ltd. is one of the leading manufacturers and suppliers of hzsf-821 sf6 gas purity test set in China. Please feel free to buy high quality equipment for sale here from our factory. Good service and reasonable price are available.
HZSF-821 SF6 Gas Purity Test Set
Technical Characteristics
Portable design | The instrument is lighter, easier to carry and use. |
Fast measurement | There is no need to wait after the instrument is turned on, and the measurement is performed immediately to obtain the purity value quickly. |
Fast gas saving | The gas consumption is only about 0.5L (101.2kPa) during measurement. |
Self-locking joint | The self-locking joint imported from Germany is safe, reliable and free of air leakage. |
Data storage | Large-capacity design can store up to 100 sets of test data. |
Clear display | The LCD screen directly displays the purity value, time and date, battery power and other content. |
RS232 interface | It can be connected to a serial printer for data printing. |
Built-in power supply | Built-in large-capacity rechargeable lithium battery, which can work continuously for 10 hours at a time. |
Technical Parameters
Purity | Measuring range | 0%~100% |
Measuring accuracy | ±0.5% | |
Measuring time | <2 minutes | |
Ambient temperature | －40℃～＋60℃ | |
Environment humidity | 0～100％ RH | |
Power supply | AC 220V | |
Built-in rechargeable battery | ||
Battery performance | Charging time is more than 20 hours and can be used for 10 hours | |
Weight | 3 kg | |
Dimension | 250×100×300mm | |
Operating temperature | －30℃～＋50℃ | |
Matters Needing Attention
l The instrument should be placed in a safe place to prevent it from being broken and avoid severe vibration;
l Do not measure corrosive gases;
l When adjusting the gas flow, the flow valve should be opened slowly so that the flow indication is about 0.2 liters/ minute;
l Before using the instrument, it should be charged in time. When charging, you only need to connect the power cord to the 220V socket. There is no need to turn on the power switch. The instrument will automatically charge. The charging time generally takes more than 20 hours.
