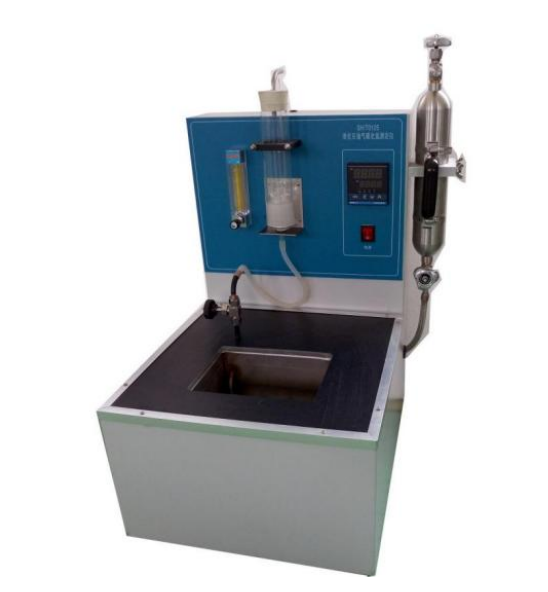

HZQL-1 Liquefied Petroleum Gas (LPG) Hydrogen Sulfide Tester

This instrument is manufactured in compliance with SH/T 0125 (Chinese petrochemical industry standard) for determining hydrogen sulfide in liquefied petroleum gas, featuring intelligent temperature control and precise flow regulation.

1. Applicable Standard

Designed and manufactured in accordance with SH/T 0125 (People's Republic of China industry standard).

2. Key Features

Intelligent temperature controller with self-tuning function to correct temperature deviations.

Precise gas flow meter with manual adjustment; flow controlled by needle valve.

Standard-compliant test glass cylinder with internal glass hook.

500 mL stainless steel sampler included.

Advanced imported PID temperature control technology with self-tuning parameters.

Gas passes through a thermal evaporation bath.

3. Technical Parameters

Working power supply: AC220V±10%, 50Hz

Power: 1000W

Temperature control range: 10~50℃ (adjustable)

Temperature sensor: Pt100 (platinum resistance)

Accuracy: ±0.1℃

Ambient humidity: ≤85%

Temperature control mode: Digital display temperature controller

4. Standard Configuration

Main unit – 1 set

Glassware assembly – 1 set

Bath cover – 1 piece

Sampler – 1 piece

Thermometer – 1 piece

Test paper – 1 box

Power cord – 1 piece

Fuse – 2 pieces

Operation manual – 1 copy

Certificate of conformity – 1 copy
