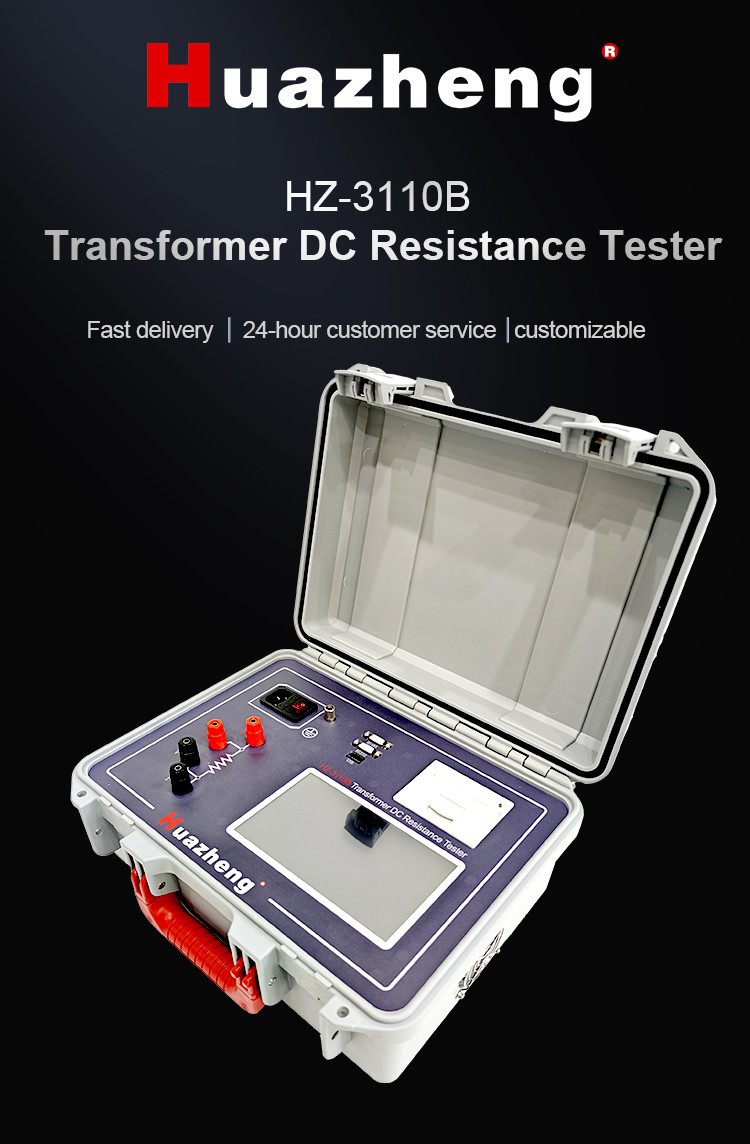

HZ-3110B 10A Automatic Transformer Winding Resistance Tester

HZ-3110B 10A Automatic Transformer Winding Resistance Tester

Introduction

To meet the demand for fast transformer measurement, Huazheng developed the HZ-3110B DC Winding Resistance Tester. This instrument features advanced technology, a compact size, light weight, and high output current capability.

Controlled by a microcontroller, the device offers a high degree of automation and includes an automatic discharge function. It is a high-precision test instrument that provides a simple and direct method for rapid transformer measurement.

Technical Data

1. Output current：automatic<20mA ,40mA,200mA,1A,5A,10A

2. Resolution：0.1μΩ

3. Range： 0.5mΩ～0.8Ω (10A)

1mΩ-4Ω (5 A)

5mΩ-20Ω ( 1 A)

100mΩ-100Ω (200mA)

1Ω-500Ω (40mA)

100Ω-100KΩ (<20mA)

4. Accuracy：±(0.2%+2 Readings)

5. Operating temperature：0~40℃

6. Ambient humidity：≤90%RH,(non condensed)

7. size: 360*290*170 mm.

8. Instrument weight :tester：6 KG Wire box：5 KG
