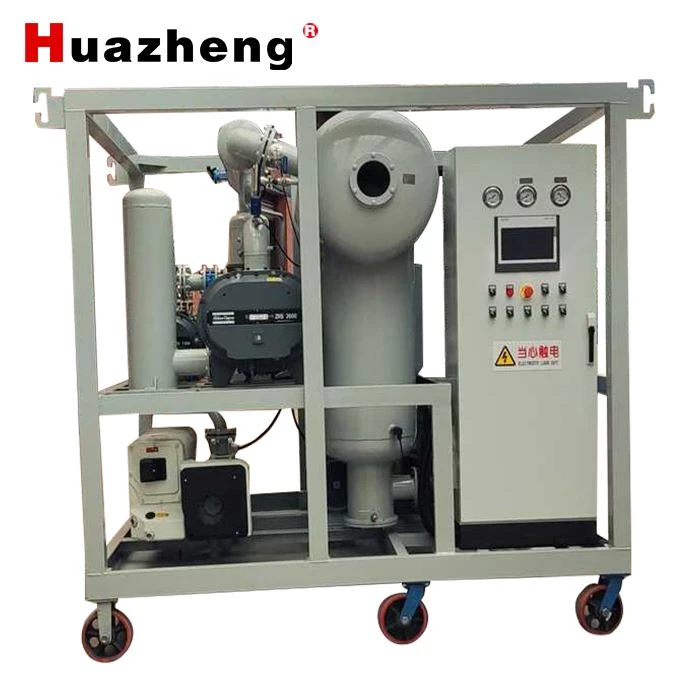

4500L/H Two Stage Insulation Oil Treatment Plant
HZLY-75A 4500L/H Two Stage Insulation Oil Treatment Plant
Parameter
Nominal flow:4500L/h
Net oil capacity: 75L/min
Pumping rate: 65M³/h
Working pressure: ≤0.4Mpa
Working oil temperature:40～70℃
Working power supply: 50Hz380V three-phase three-wire
Heating power: 48Kw (Separate control by two groups)
Total power: 55kw
Operating noise: ≤75dB(A)
Inlet/outlet pipe diameter: 45/45mm
Dimensions: 165×160×170cm
Equipment weight: 560Kg
Configurations
NO. | Name | Model | Qty | Brand |
1 | Oil pump | CBY3080-1FL | 1 | Sichuan Changye |
2 | Oil pump motor | Y112-6 | 1 | Chongqing Kongte |
3 | Vacuum pump | X-65 | 1 | Shanghai Jiuxin |
4 | Coarse filter | A050 | 1 | |
5 | Primary filter | A010(10µ) | 1 | |
6 | Second filter | A001(1µ) | 1 | |
7 | Heater | 8KW | 6 | |
8 | Ball valve | 1 | Ningbo Amico | |
9 | Check valve | DN32 | 1 | Ningbo Kailing |
10 | Electric | 1 | Delixi | |
11 | Liquid level sensor | 2 |
