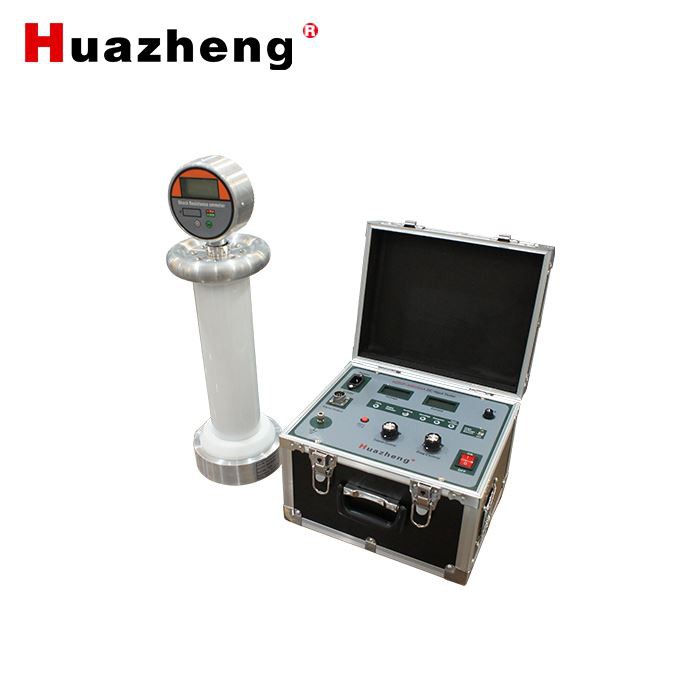

200kV 5mA DC Hipot High Voltage Generator
Huazheng Electric Manufacturing (Baoding) Co., Ltd. is one of the leading manufacturers and suppliers of 200kv 5ma dc hipot high voltage generator in China. Please feel free to buy high quality equipment for sale here from our factory. Good service and reasonable price are available.
200kV 5mA DC Hipot High Voltage Generator
HZZGF series DC high voltage generator are used IF voltage circuit and the latest PWM technology to do closed-loop adjustment and used voltage feedback to improve voltage stability.The use of high power IGBT devices with excellent Performance and their drive technology,and the measures about special shielding, grounding and isolation in accordance with electromagnetic compatibility theory,all of this makes the DC high voltage generator high-quality, portable and can withstand the rated voltage discharge and prevent being damaged.
The major advanced technology components of HZZGF series DC high voltage generator equipment are made from the United States, Germany, Japan and other countries so that the equipments become more reliable and more stable.
DC High Voltage Generator
specification technic parameter | 60/2 | 60/5 | 120/2 | 120/3 | 120/5 | 200/2 | 200/3 | 200/5 | 300/2 | 300/3 |
Rated voltage(KV) | 60 | 60 | 120 | 120 | 120 | 200 | 200 | 200 | 300 | 300 |
Rated current(mA) | 2 | 5 | 2 | 3 | 5 | 2 | 3 | 5 | 2 | 3 |
Rated power(W) | 120 | 300 | 240 | 360 | 600 | 400 | 600 | 1000 | 600 | 900 |
working | incontinuous use | |||||||||
The time should be no more than 30 minutes when continuously use it | ||||||||||
capacitance | capacitance of the tested res is absoluteness | |||||||||
Can be charged with 1.5 times of rated current | ||||||||||
configuration | electric insulated Voltage Multiplier is made of epoxy FRP(Fiberglass-Reinforced Plastics) | |||||||||
Air insulated,without leak | ||||||||||
characteristic of Control box | One button for high precision of 0.75UDC--1mA(precision≤1.0％)is suit to do zinc oxide lightning arrester test | |||||||||
overvoltage protection use dialing code set,be clear at a glance | ||||||||||
International standard box withTwo kind of using way(can be take out from the box for using) makes it easy to use. | ||||||||||
Examination and Management of Failure
phenomena | cause | management | |
1 | The green light does not work when power on | 1.Power lines are disconnected 2. Power fuse is fusion | change power lines change power fuse |
2 | The red light does not work when pushed | Voltage regulation is not returned to zero | Voltage regulation returned to zero |
3 | the red light works at first,but it goes out and the green light works when Voltage Multiplier starts. | The tested res short-circuit | check the output cable check the tested res |
4 | the red light goes out and the green light works when Voltage Multiplier works. | the tested res discharge or shoot through the protecting action | check the tested res and reset the protecting value. |
Please contact us if you still cannot eliminate failure.
