As a supplier of transformer testers, I often encounter a common question from our customers: "Can a transformer tester test all types of transformers?" This question is crucial as it directly relates to the efficiency, accuracy, and versatility of the testing equipment. In this blog, I will delve into this topic, exploring the capabilities and limitations of transformer testers and how our products at our company can meet various testing needs.
Understanding the Diversity of Transformers
Transformers come in a wide range of types, each designed for specific applications and operating conditions. The most common types include power transformers, distribution transformers, instrument transformers, and special - purpose transformers.
Power transformers are used in high - voltage transmission and sub - transmission systems. They are large in size and handle significant power levels. Distribution transformers, on the other hand, are responsible for stepping down the voltage for end - user consumption. Instrument transformers, such as current transformers (CTs) and voltage transformers (VTs), are used for measurement and protection in electrical systems. Special - purpose transformers, like furnace transformers, rectifier transformers, and traction transformers, are designed for specific industrial processes.
The differences in these transformers, including their voltage ratings, power ratings, winding configurations, and insulation materials, pose challenges for transformer testing.
Capabilities of Transformer Testers
Modern transformer testers are highly advanced and can perform a variety of tests on different types of transformers. Most transformer testers can measure basic electrical parameters such as winding resistance, capacitance, inductance, and turns ratio.
- Winding Resistance Measurement: Measuring the winding resistance is essential for detecting faults like short - circuited turns, open circuits, or poor connections in the transformer windings. Our HZ - 3100A 100A Rapid Transformer Winding Resistance Test Kit is specifically designed for this purpose. It can quickly and accurately measure the winding resistance, even for large - capacity transformers.
- Turns Ratio Measurement: The turns ratio of a transformer is a critical parameter that affects its performance. By measuring the turns ratio, we can ensure that the transformer is operating within its design specifications. Transformer testers can also detect any abnormal changes in the turns ratio, which may indicate internal faults.
- Insulation Resistance Testing: Insulation resistance testing helps to assess the quality of the transformer's insulation. A low insulation resistance value may suggest moisture ingress, insulation degradation, or other insulation - related problems. Transformer testers can perform this test at different voltages to accurately evaluate the insulation condition.
Limitations of a Single Transformer Tester
Despite the advanced capabilities of modern transformer testers, no single tester can test all types of transformers comprehensively.
- High - Voltage Testing: Power transformers used in high - voltage transmission systems often require high - voltage testing to ensure their insulation integrity under extreme conditions. Some standard transformer testers may not be able to generate the high voltages needed for these tests. Specialized high - voltage test equipment, such as high - voltage generators and impulse voltage generators, may be required for such applications.
- Special - Purpose Transformer Testing: Special - purpose transformers, like traction transformers used in railway systems, have unique operating conditions and electrical characteristics. These transformers may require specialized tests that a general - purpose transformer tester cannot perform. For example, traction transformers need to be tested for their ability to withstand high - frequency and high - current transients.
- Large - Capacity Transformers: Large - capacity power transformers have very low impedance and high inductance. Testing these transformers requires a tester with high - current output and long - time constant measurement capabilities. Some regular transformer testers may not have sufficient power or the ability to handle the large time constants associated with these transformers.
Our Comprehensive Solution: The HZDW - 33 Integrated Transformer Test System
To address the diverse testing needs of different types of transformers, we offer the HZDW - 33 Integrated Transformer Test System. This system is a multi - functional testing platform that combines various testing functions into one unit.
- Versatile Testing Functions: The HZDW - 33 can perform a wide range of tests, including winding resistance measurement, turns ratio measurement, insulation resistance testing, and short - circuit impedance testing. It can be used to test power transformers, distribution transformers, and instrument transformers.
- High - Precision Measurement: With advanced measurement technology, the HZDW - 33 provides high - precision measurement results. It can accurately measure the electrical parameters of transformers, even under complex operating conditions.
- User - Friendly Interface: The system is equipped with a user - friendly interface that makes it easy for operators to perform tests and analyze the results. It also has data storage and printing functions, which can help operators record and manage the test data.
Other Specialized Testers in Our Product Line
In addition to the HZDW - 33, we also offer other specialized transformer testers to meet the specific needs of different types of transformers.

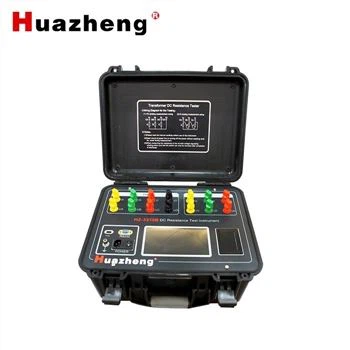

The HZ - 3310B 10A Three Phase Transformer Winding DC Resistance Tester is designed for three - phase transformer winding resistance testing. It can provide accurate and reliable measurement results for three - phase transformers of different capacities.
Conclusion and Call to Action
In conclusion, while no single transformer tester can test all types of transformers, our company offers a comprehensive range of products that can meet the diverse testing needs of different transformers. Our HZDW - 33 Integrated Transformer Test System, along with other specialized testers, can provide accurate and reliable test results for power transformers, distribution transformers, instrument transformers, and even some special - purpose transformers.
If you are in the market for a transformer tester or need more information about our products, we welcome you to contact us for procurement discussions. Our team of experts is ready to provide you with detailed product information and technical support to help you choose the most suitable testing equipment for your specific needs.
