Transformer on-Load Tap Changer Tester (OLCA)
Product Introduction
The research and development of a batch of high-tech 3 phase power quality analyzer price, tan delta test set, high voltage multifunction phasing stick has cultivated our company's new economic growth point. Our company adheres to the business philosophy of 'Quality is our life, integrity is our soul, and speed is our unchanging pursuit', we have continuously upgraded the products in recent years to ensure quality and further enhance its market competitiveness. Our products are mainly exported to Southeast Asia, the Middle East, North America and Europe.

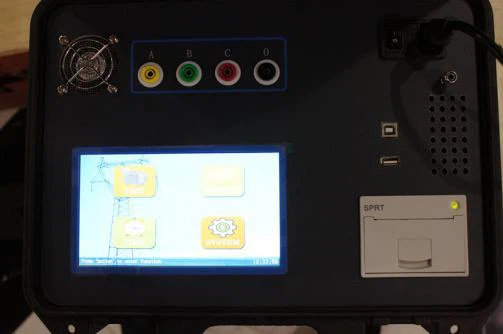

HZYA-3Z Transformer On Load Tap Changer Oltc Tester
The Transformer On-Load Tap Changer (OLTC) Parameter Tester is a specialized instrument designed for measuring and analyzing the operating characteristics of transformer on-load tap changers.
It can test key parameters of the on-load tap changer, including its transition process, transition waveform, transition time, transient resistance, and three-phase synchronism.
Features
1. Large output current, light weight;
2. Test YO, Y, △ type transformer, the resistance unnecessary to be converted but directly display;
3. With winding or without winding measurement;
4. Waveform display automatically adjusts the resistance according to the sampled value, the time value amplitude
5. With perfect protection circuit, reliability and strong;
6. 7-inch large LCD display, easy on-site operation;
7. Built-in high-capacity lithium battery(optional)
8. 500 sets of data can be saved in Internal automatically, can connect with U Disk.
Technical Parameters
Output current | 2.0A,1.0A,0.5A,0.2A |
Measuring range Transition resistance | 0.5Ω～5Ω(2.0A)/ 2Ω～20Ω(1.0A)/ 5Ω～40Ω(0.5A)/ 20Ω～100Ω(0.2A) |
Transition time | 0 ~ 320ms |
Open circuit voltage | 24V |
Measurement accuracy Transition resistance | ± (5% reading ± 0.1Ω) |
Transition time | ± (0.1% reading ± 0.2ms) |
Sampling rate of 20kHz | |
Storage mode U disk storage | |
Through continuous optimization of product design, we take product quality as the center, service as the soul, and integrity management as the concept, and contribute our modest strength to the Transformer on-Load Tap Changer Tester (OLCA) industry. We are developing new strategies to ensure that our business can keep pace with the times and comply with the principles of corporate social responsibility. Our non-stop innovative technologies introducing is to develop high value-added products, and to improve business profitability.
