Introduction

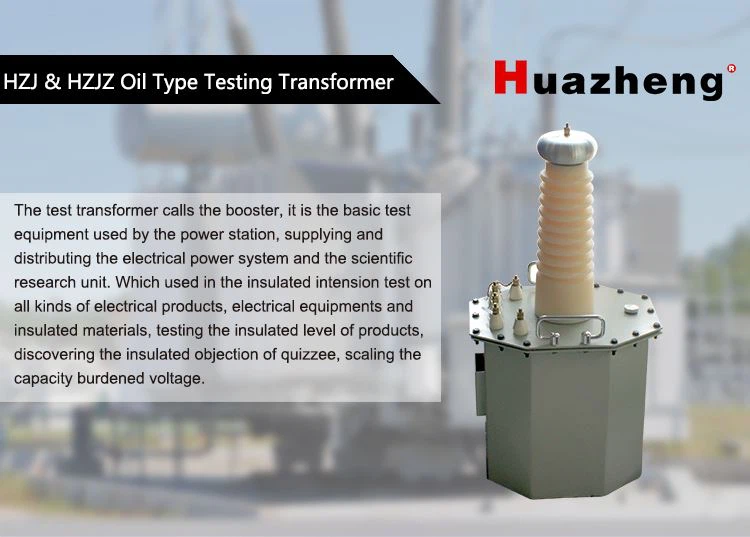

The 100kV oil immersed high voltage ac test transformer, also known as voltage booster, is the basic test equipment used in power stations, power supply and distribution of electric power systems and scientific research units. The 100kV Oil Immersed High Voltage AC Test Transformer is mainly used for insulation strength testing of various electrical products, electrical equipment and insulation materials, testing the insulation level of products, discovering the insulation defects of the testers and calculating the capacity load voltage.

Features

Our 100kV Oil Immersed High Voltage AC Test Transformer is the first choice for customers because of its reliable quality and favorable price. It has a portable outer cover, with light weight, beautiful appearance, easy to move, etc. In addition, our equipment adopts multi-layer insulation, dividing the internal insulation inside the transformer into multiple oil channels, thus improving the insulation level and reducing the size.

Technical Parameters

Model	Capacity (KVA)	High Frequency Voltage Output (KV) AC DC		High Frequency Voltage Current (Ma) AC DC		Low pressure input		Ratio	Temperature (℃) raised/ 30 minute
Model	Capacity (KVA)	High Frequency Voltage Output (KV) AC DC		High Frequency Voltage Current (Ma) AC DC		V	A	Ratio	Temperature (℃) raised/ 30 minute
HZJZ -1.5	1.5	50	70	30	15	200	7.5	500	10
HZJZ-3	3	50	70	60	15	200	15	500	10
HZJZ -5	5	50	70	100	15	200/380	25	500	10
HZJZ-10	10	50	70	200	100	380	50/26	500	10
HZJZ -20	20	50	70	400	100	380	53	500	10
HZJZ-30	30	50	70	600	100	380	79	500	10
HZJZ -40	40	50	70	800	100	380	105	500	10
HZJZ-50	50	50	70	1000	100	380	132	500	10
HZJZ -5	5	100	140	100	50	200/380	25	1000	10
HZJZ -10	10	100	140	200	100	380	50/26	1000	10
HZJZ-20	20	100	140	300	100	380	53	1000	10
HZJZ -30	30	100	140	400	100	380	79	1000	10
HZJZ -40	40	100	140	600	100	380	105	1000	10
HZJZ -50	50	100	140	1000	100	380	132	1000	10

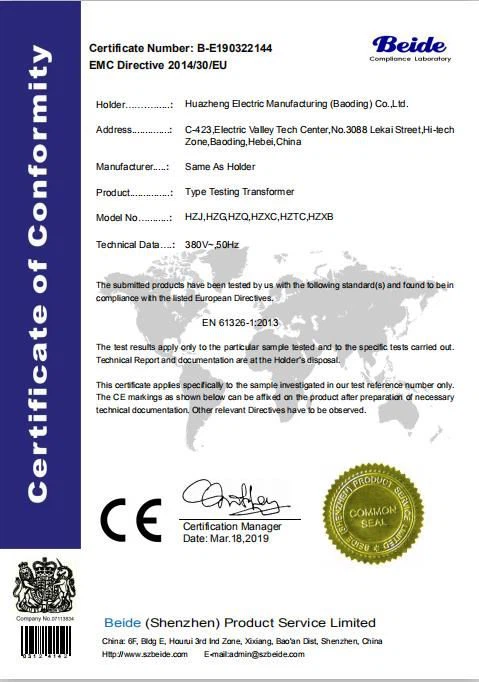

HZJ 100kV 5ma AC DC Oil Immersed Type HV High Voltage AC Test Transformer CE Certificate

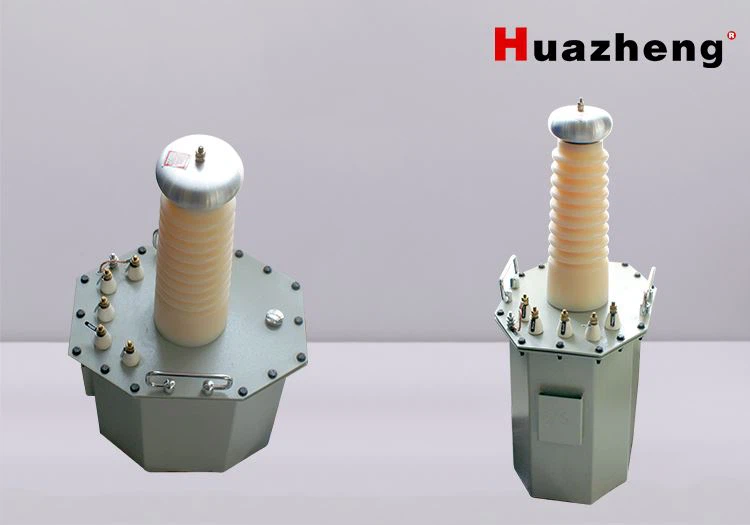

HZJ Oil Immersed Testing Transformer

Oil Immersed Testing Transformer

lQDPKcrtGtmqmW_NAazNAyCw_iF2foFjEn0JNdw6T7ADAg_800_428

Our company has accumulated many years of experience in manufacturing Oil Immersed Distribution Transformer with Test Report for Power Supply. We are always maintaining close contact with customers to ensure effective industry solutions. Our corporate responsibility has always been centered on operating with integrity and respect for the many people and organizations with which we do business. We vigorously promote the application of clean production technology and strengthen the efficient recycling of energy resources.
