Htfa-103 Current and Potential Transformer Characteristics Comprehensive Vt CT PT Tester
Product Introduction
Our ac resonant hipot test, DC Hipot Test Machine, variable inductance resonant test system have been sold all over the world for many years and are favored by customers and businessmen. Our company provides a fair and competitive working environment for each member of the enterprise, so that the employees can give full play to their potential. We hope that all our staff can deeply understand the connotation of corporate culture, strive to do better, be honest and do things steadfastly. From manufacturing to creation, our company bring high quality products to consumers at home and abroad.

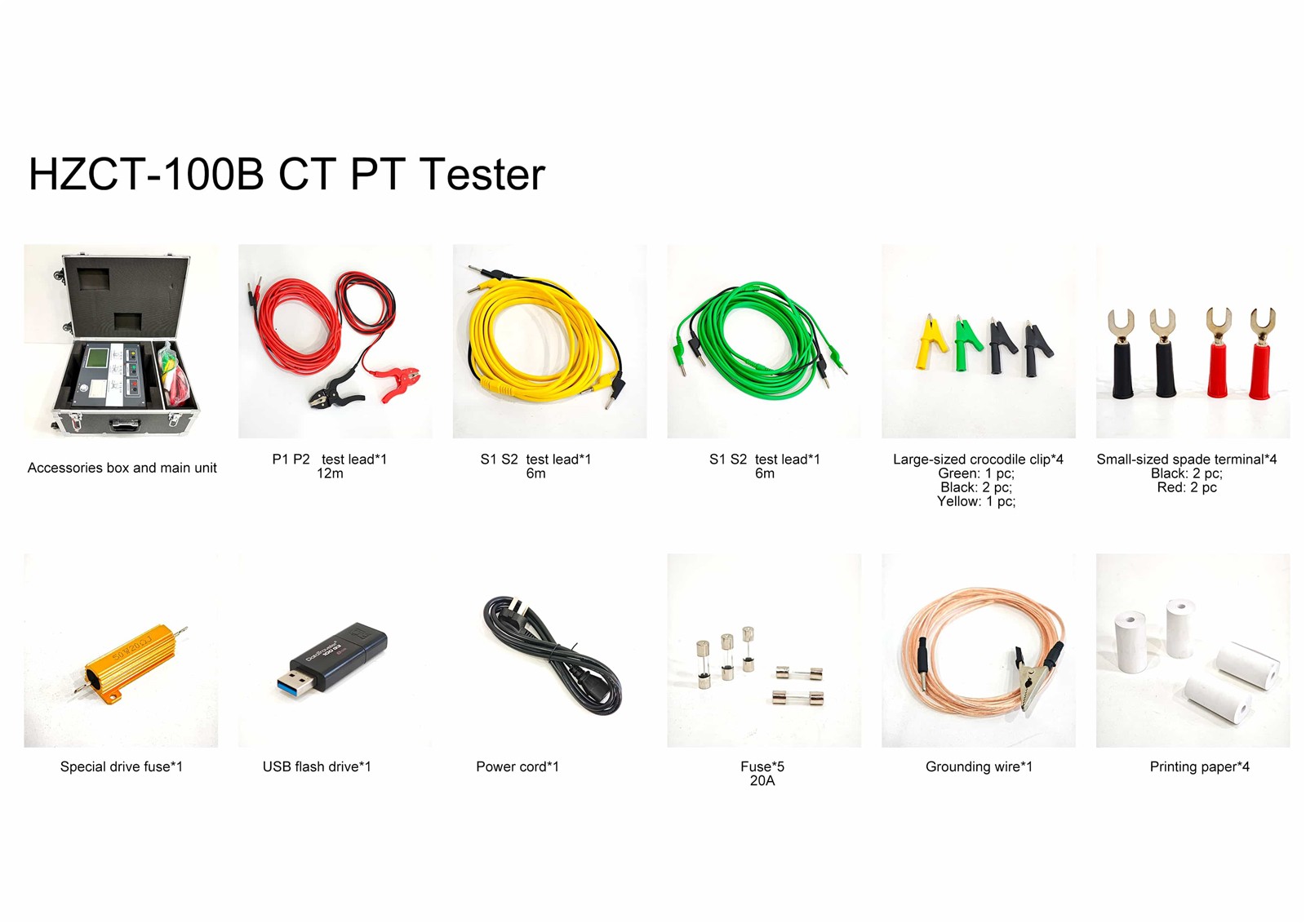

HZCT-100B Variable Frequency Automatic Current Transformer CT PT Analyzer
Instrument Characteristics And Parameters
Born from extensive customer feedback and deep theoretical research, the HZCT-100B CT PT Analyzer takes the proven reliability of our FA Series Transformer Tester to the next level. Powered by high-performance DSP and ARM technology, it delivers rock-solid stability, full-featured functionality, and exceptional automation. The professional choice for transformer verification in the power industry.
Technical Parameter
HZCT-100B | ||
Usage | CT, PT | |
Output | 0~180Vrms,12Arms,36A(peak value) | |
Voltage measurement accuracy | ±0.1% | |
CT Ratio | Range | 1~40000 |
Accuracy | ±0.05% | |
PT Ratio | Range | 1~40000 |
Accuracy | ±0.05% | |
Phase | Range | ±2min |
Accuracy | 0.5min | |
DC resistance | Range | 0~300Ω |
Accuracy | 0.2%±2mΩ | |
Burden | Range | 0~1000VA |
Accuracy | 0.2%±0.02VA | |
Power supply | AC220V±10%,50Hz | |
Environmental Conditions | Operating temperature: -10 °C ~ 50 °C ,Humidity :≤90% | |
Weight and Dimensions | Dimensions: 365 mm×290 mm×153mm,Weight<10kg | |
Warranty
For the products manufactured by our Company, if the defects appear within 3 months from the date of delivery, we can provide the replacement; if the defects appear within one year from the data of delivery, we can provide free services and repairs; if the defects appear more than one year after delivery, we can provide life-long paid maintenance services.
Our goal is to give customers defect-free and high-value Htfa-103 Current and Potential Transformer Characteristics Comprehensive Vt CT PT Tester on time and pursue customer satisfaction. We actively learn from the advanced, and constantly learn from experience, so as to lay the foundation for us to occupy more markets. In recent years, our company has improved the staff's quality by continuously strengthening the enterprise's management consciousness and formed its own unique management mode in the development process.
