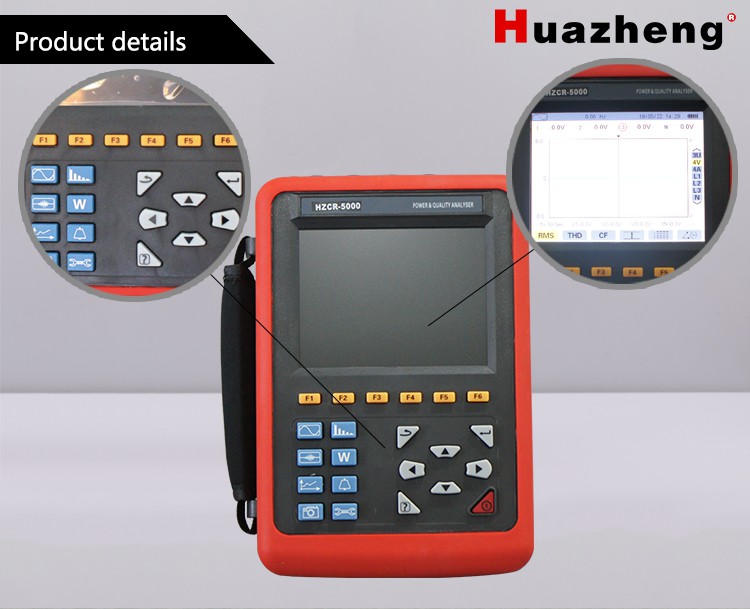

HZCR-5000 Three Phase Electric Digital Power Quality Analyzer

Battery indicator

Battery symbol shows dump energy. When the voltage is too low, automatic shutdown after the 1 minute.

Power consumption

Current consumption of normal test 490 mA, continuous working for 8 hours.

Size of clamp

10A small sharp current clamp: 7.5mm×13mm;
100A circle current clamp: 35mm×40mm;
1000A circle current clamp: 68mm×68mm.
3000A Flexible Coil Current Sensor (with Integrator) : Ф300mm

Number of channels

4U/4I.

Phase-to phase voltage

1.0V~2000V.

Phase-to-neutral voltage

1.0V~1000V.

Current

Current clamp: 10mA~10.0A;
0.10A~100A;
1.0A~1000A;
3000A Flexible Coil Current Sensor (with Integrator) : 10A ~ 3000A

Frequency

40Hz~70Hz.

Parameters of electricity

W, VA, Var, PF, DPF, cosφ, tanφ.

Energy parameters

Wh, Varh, Vah.

Harmonic

Order 0~50.

Total harmonic distortion

Order 0~50, each phase.

Number of Transient records

150 sets.

Voltage flicker

Yes.

Starting current mode

Yes, 100 seconds.

3 phases unbalance

Yes.

Record

300 days(simultaneous recording 20 parameters, record one point every 5 seconds).

Min/Max recorded value

Measurement of maximum and minimum values over a period of time.

Alarm

40 different types of parameter selections, 12,800 sets of alarm logs.

Peak

Yes.

Phasor diagram display

Automatically.

Capacity of snapshots

60.

Menu language

English

Communication

USB.

Automatic switching off

When an alarming campaign is initiated or a search for transients, an inrush current capture, or a trend recording is pending or in progress, the device is not automatically switching off.

In other test modes, 15 minutes without keystrokes, automatic shutdown after prompt 1 minute.

Backlight function

Yes, suitable for use at night and dark place.

Length of voltage test wire

3m.

Length of current sensor wire

2m.

Input impedance

Input impedance of test voltage: 1MΩ.

Withstand voltage

Withstand 3700V/50Hz sinusoidal AC voltage for 1 minute between instrument wiring and shell.

Insulation

Between instrument wiring and shell ≥10MΩ.

Structure

Double insulation, with insulation vibration-proof sheath.

Safely rules

IEC 61010 1000V Cat III/ 600V CAT IV, IEC61010-031, IEC61326, Pollution degree: 2.

1

Main engine

1

2

Power adapter

1

3

10A clamp meter

4

4

100A clamp meter

4

5

1000A clamp meter

4

6

3000A clamp meter

4

7

Integrator

4

8

lithium battery

4

9

Test line (1 red 1green 1 yellow 1blue 1 black )

5

10

USB data cable

1

11

Test probe

5

12

Alligator clips

5

13

Software disc

1
